The first step in modernizing VCF Operations dashboards is changing the entry point from tools to services.
The next step is harder.
You have to decide what “healthy” actually means.
That is where private cloud SLOs become useful. Not because infrastructure teams need to copy every SRE practice from application engineering, but because VCF operations teams need a clearer way to define expectations, measure service behavior, and prioritize operational work.
A private cloud dashboard that says “green” without explaining the service expectation is not enough.
Green compared to what?
Healthy for whom?
Ready for which workload tier?
Safe for how long?
Owned by which team?
At risk because of which dependency?
VCF Operations gives platform teams an opportunity to connect fleet observability, diagnostics, capacity, lifecycle, tags, and component health into a service-oriented operating model. The dashboard strategy should reflect that.
TL;DR
A private cloud SLO is not just an uptime number.
For VCF Operations, useful SLOs often describe service readiness, provisioning success, capacity headroom, policy compliance, lifecycle readiness, diagnostics remediation, and governance hygiene.
A practical VCF Operations observability model should include:
The goal is not more dashboards.
The goal is fewer, better dashboards that connect service expectations to operational action.
Start with the Service, Not the Metric
Many infrastructure dashboards start with available metrics.
That is backwards.
A better design starts with the service the platform team provides.

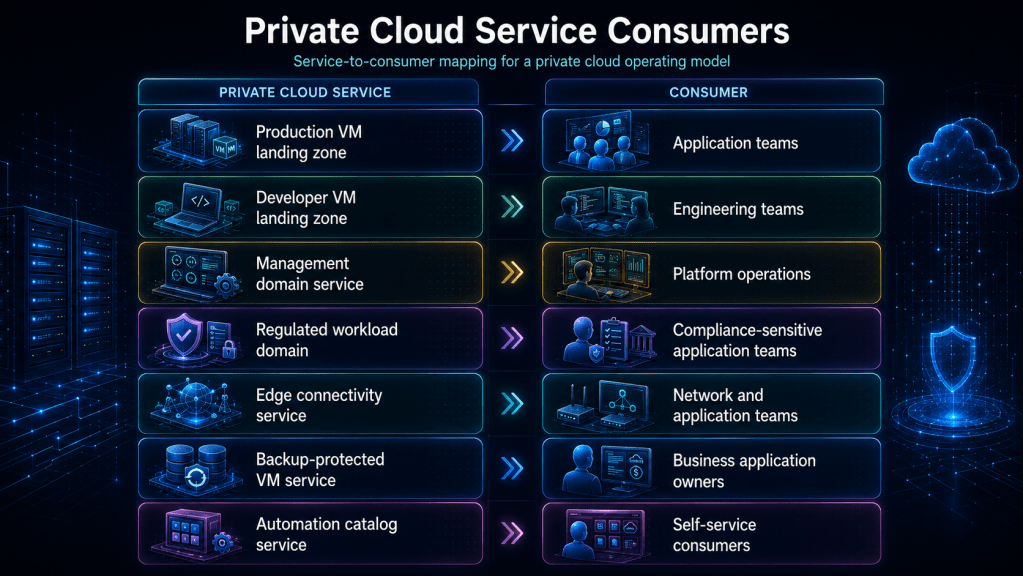

Examples include:
| Private Cloud Service | Consumer |
|---|---|
| Production VM landing zone | Application teams |
| Developer VM landing zone | Engineering teams |
| Management domain service | Platform operations |
| Regulated workload domain | Compliance-sensitive application teams |
| Edge connectivity service | Network and application teams |
| Backup-protected VM service | Business application owners |
| Automation catalog service | Self-service consumers |
Once the service is clear, the platform team can define the right indicators.
For a production VM landing zone, CPU utilization alone is not a service indicator. It is one input.
A more useful set of questions would be:
- Can workloads be provisioned?
- Is there enough placement headroom?
- Are storage policies compliant?
- Are network policies realized?
- Are required tags present?
- Are certificates, identity, and lifecycle state inside the operating window?
- Are there active diagnostics findings that threaten the service?
- Is there an owner for every remediation item?
That is where SLO design starts.
The VCF Operations Observability Stack
The diagram below shows a practical stack for VCF Operations dashboards. The top layer is what service owners and operators should see first. The lower layers provide evidence, context, and remediation detail.
The important detail is the direction of movement. The operator begins with the service and moves downward only when more context is needed. That prevents the dashboard experience from becoming another alert maze.
Define SLIs Before SLOs
An SLO is only useful if the underlying indicator is meaningful.
In practical terms:
| Term | Private Cloud Meaning |
|---|---|
| SLI | A measurable indicator of service behavior. |
| SLO | The target or acceptable range for that indicator. |
| SLA | A contractual or formal service commitment, if one exists. |
| Error budget | The amount of acceptable miss or degradation before behavior changes. |
For private cloud operations, not every useful SLO is about external uptime.
Some of the best infrastructure SLOs describe whether the platform is ready to accept, protect, place, connect, and govern workloads.
Example Private Cloud SLOs for VCF Operations
The values below are examples. They should be tuned to the environment, business criticality, operational maturity, and available telemetry.
| Service Area | Example SLI | Example SLO |
|---|---|---|
| VM provisioning | Successful catalog deployments divided by total catalog deployments | 99 percent successful during business hours |
| Placement readiness | Eligible production clusters meeting minimum headroom policy | 95 percent of production clusters maintain defined headroom |
| Storage policy compliance | Compliant VMs divided by VMs assigned to protected storage policies | 99 percent compliance for production workloads |
| Network realization | Successfully realized policy changes divided by total policy changes | 99 percent realized within the approved change window |
| Lifecycle readiness | Domains passing lifecycle prechecks divided by domains in scope | 100 percent pass before scheduled upgrade window |
| Certificate hygiene | Components with certificates inside policy window divided by total components | 100 percent inside renewal threshold |
| Diagnostics remediation | Critical findings remediated within target divided by total critical findings | 95 percent remediated within agreed window |
| Tag governance | Objects with required tags divided by managed objects in scope | 98 percent required tag coverage |
| Backup classification | Protected production VMs divided by production VMs requiring backup | 99 percent correct backup classification |
| Capacity planning | Clusters projected to remain above headroom threshold | 90 days of safe headroom for critical services |
These are not universal targets. A lab environment, developer landing zone, production regulated workload domain, and management domain should not all share the same SLOs.
The mistake is forcing one reliability target across every service.
The better approach is to define a small set of service-specific SLIs, observe real behavior, and tune the SLOs after the team understands the baseline.
The Service Dashboard Contract
A dashboard should have a contract before anyone starts arranging widgets.
The contract keeps the dashboard from turning into a junk drawer of interesting panels.
| Contract Field | Example |
|---|---|
| Service name | Production VM Landing Zone |
| Consumers | Application teams, NOC, platform operations |
| Service owner | Cloud platform team |
| Critical dependencies | VCF Automation, vCenter, ESX, vSAN, NSX, DNS, identity, IPAM, certificates |
| Primary SLI | Provisioning success rate |
| Secondary SLIs | Placement readiness, storage policy compliance, required tag coverage |
| SLO | 99 percent successful catalog requests during business hours |
| Risk indicators | Certificate expiration, lifecycle precheck failure, critical diagnostic finding, capacity headroom breach |
| Escalation path | Platform on-call, network on-call, storage/platform lead |
| Review cadence | Weekly operations review, monthly SLO review |
This is more important than the visual layout.
A beautiful dashboard with no contract will eventually become noise. A plain dashboard with a strong contract can drive real operational behavior.
Fleet Observability: Local Issue or Systemic Pattern?
VCF Operations dashboards should help operators distinguish between isolated issues and fleet-level patterns.
That distinction matters.
An NSX warning in one workload domain may be a local issue.
The same warning across several domains may be a standards, lifecycle, or design issue.
A certificate nearing expiration on one component may be a backlog item.
Certificate drift across a fleet may be a governance failure.
A missing owner tag on one VM may be cleanup.
Missing ownership metadata across a landing zone may make service health reporting unreliable.
A good fleet observability dashboard should answer:
| Question | Why It Matters |
|---|---|
| Which VCF instances are affected? | Separates isolated issues from fleet patterns. |
| Which domains are affected? | Helps identify service and ownership impact. |
| Which sites or regions are affected? | Supports resilience and operational escalation. |
| Which services depend on the affected components? | Connects infrastructure findings to consumer impact. |
| Is the issue tied to lifecycle, configuration, capacity, or governance? | Routes the work to the right backlog. |
| Is this a recurring finding? | Helps platform teams fix root causes instead of symptoms. |
Fleet observability is not just a bigger inventory screen. It is the ability to see whether the operating model is consistent across the private cloud.
Tags are often treated as reporting metadata.
In a service-oriented VCF Operations model, they become an operating control.
You cannot build reliable service dashboards if you cannot classify the objects that make up the service.
At minimum, the platform should define tag categories for:
| Tag Category | Purpose |
|---|---|
| Service | Maps object to private cloud service or application service. |
| Environment | Production, non-production, lab, management. |
| Criticality | Tier 0, Tier 1, Tier 2, best effort. |
| Owner | Responsible team or application owner. |
| Cost center | Showback, chargeback, or financial reporting. |
| Backup policy | Recovery expectation and protection tier. |
| Compliance scope | Regulated, internal, restricted, unrestricted. |
| Lifecycle ring | Pilot, standard, delayed, exception. |
The dashboard should also show tag hygiene as a first-class signal.
If required tags are missing, the problem is not just reporting quality. It affects ownership, escalation, compliance, automation, cost allocation, and SLO accuracy.
Diagnostics Should Feed the Backlog
Diagnostics should not be treated as a separate queue that only specialists review when there is spare time.
A diagnostic finding is a service risk until triaged.
That does not mean every finding becomes an incident. It means findings should be evaluated through the service model.
| Finding Type | Service Question |
|---|---|
| Security advisory | Does this affect a service boundary, critical domain, or exposed tier? |
| Availability finding | Does this reduce redundancy, failover, or maintenance tolerance? |
| Upgrade precheck failure | Does this block a planned lifecycle window? |
| Performance finding | Does this affect an active SLO or consumer experience? |
| Certificate issue | Does this threaten authentication, management access, or automation? |
| Configuration drift | Does this break fleet consistency, policy, or compliance? |
| Log-based finding | Does this explain a current or recurring service symptom? |
The dashboard should not simply show “400 active findings.”
It should show:
- which findings threaten which services
- which findings are critical
- which findings have owners
- which findings are aging
- which findings block lifecycle or compliance
- which findings are accepted risk
- which findings need incident response
This turns diagnostics into operational work instead of background noise.
The Dashboard Stack
A mature VCF Operations model usually needs several dashboard types.
Service Owner Dashboard
This dashboard should be readable by a service owner or technical leader.
It should show:
- service status
- SLO status
- active risks
- major incidents
- capacity outlook
- lifecycle blockers
- diagnostics summary
- remediation ownership
It should not show every raw ESX, vSAN, or NSX counter.
NOC or Operations Dashboard
This dashboard supports first response.
It should show:
- what changed
- what service is affected
- which domain or site is involved
- whether the issue is known
- whether an SLO is at risk
- who owns escalation
- what runbook applies
This is the dashboard that reduces swivel-chair troubleshooting.
Platform Engineering Dashboard
This dashboard supports root cause analysis and backlog planning.
It should show:
- recurring findings
- policy drift
- automation failure patterns
- noisy clusters or domains
- lifecycle readiness
- capacity forecast
- service-level trends
- SLO misses by cause
This is where engineering work gets prioritized.
Component Specialist Dashboard
This dashboard supports detailed remediation.
It may focus on:
- vSAN performance and policy health
- NSX edges, segments, gateways, and realization
- vCenter and ESX health
- VCF Automation catalog and deployment failures
- certificates and identity
- logs and diagnostics
These dashboards still matter. They are just no longer the front door.
Implementation Sequence
Do not try to redesign every dashboard at once.
Start with one important private cloud service.
Good candidates include:
| Candidate Service | Why It Works |
|---|---|
| Production VM landing zone | Broad enough to include compute, storage, network, identity, automation, capacity, and governance. |
| Management domain service | High operational importance and clear ownership. |
| Gold workload domain | Clear criticality and performance expectations. |
| VM provisioning service | Easy to connect to consumer experience. |
| Edge connectivity service | Good for NSX, routing, firewalling, and availability visibility. |
| Regulated workload service | Strong governance, tag, compliance, and ownership requirements. |
Then move through the following sequence.
Step 1: Define the Service
Name the service. Identify the consumers. Assign the owner. Document the dependencies.
Do not start in the dashboard editor.
Start with the operating model.
Step 2: Choose Three to Five SLIs
Pick a small set of indicators that describe service behavior.
For a VM provisioning service, useful first indicators might be:
- request success rate
- average deployment duration
- placement failure rate
- catalog availability
- required tag completion
- policy compliance after deployment
Avoid building 30 SLIs on day one. That creates noise before it creates trust.
Step 3: Set Initial SLOs
Start with reasonable targets.
The first version does not need to be perfect. It needs to be explicit.
After several weeks of real data, tune the targets.
Step 4: Map Dependencies
For each SLI, identify what can affect it.
A provisioning SLO might depend on:
- VCF Automation
- vCenter availability
- cluster headroom
- vSAN datastore and policy health
- NSX segment and edge readiness
- DNS and IPAM
- identity provider availability
- content library health
- certificates
- lifecycle state
This mapping is what makes the dashboard actionable.
Step 5: Build the Service Health View
The first dashboard should answer the service question in less than a minute.
It should show:
- service status
- SLO status
- active risks
- affected domains
- dependency state
- owner and escalation path
- top diagnostics findings
- current backlog items
Everything else can be a drill-down.
Step 6: Connect the Dashboard to Work Intake
This is where many observability efforts fail.
A dashboard that shows risk but does not change work intake is just reporting.
Connect findings to:
- incidents
- service requests
- backlog items
- change records
- lifecycle plans
- runbooks
- operational reviews
The dashboard should influence what the team does next.
Step 7: Retire Duplicate Views
Once the service dashboard is trusted, retire or demote duplicate tool-first dashboards.
Do not leave two first pages for the same operational question.
That creates confusion and splits the team’s attention.
Practical Review Checklist
Use this checklist before publishing a private cloud SLO dashboard.
| Question | Pass Criteria |
|---|---|
| Is the service clearly named? | The dashboard maps to a real private cloud service. |
| Is the owner visible? | The responsible team and escalation path are obvious. |
| Are SLIs defined? | The dashboard measures service behavior, not only component counters. |
| Are SLOs explicit? | Targets or ranges are visible and understandable. |
| Are dependencies mapped? | VCF components and external dependencies are represented. |
| Does it show fleet context? | Operators can tell whether the issue is local or systemic. |
| Are diagnostics included? | Findings are tied to risk and action. |
| Are tags trustworthy? | Required metadata is present enough to support the view. |
| Is there a work intake path? | Incidents, backlog, change, or runbook paths are clear. |
| Is component detail separated? | Drill-down exists without overwhelming the service view. |
If the dashboard does not pass this checklist, it may still be useful. It just is not ready to become a service health or SLO dashboard.
Conclusion: Observability Should Change the Work
VCF Operations gives platform teams a better foundation for private cloud observability, but the value comes from the operating model built around it.
Service health should be the front door.
Private cloud SLOs should define expectations.
Fleet observability should show whether risk is isolated or systemic.
Diagnostics should feed the backlog.
Tags should classify ownership and impact.
Component dashboards should support remediation, not dominate the first view.
The goal is not to build more dashboards.
The goal is to make dashboards operationally useful.
A good VCF Operations dashboard should help the team answer three questions quickly:
Is the private cloud service healthy?
Are we meeting the expectations we committed to?
What work needs to happen next?
That is the difference between dashboard sprawl and fleet-level observability.
