Azure Local as a Digital Power Grid: A Practical Architecture for Distributed Infrastructure

TL;DR

Azure Local is best understood as a distributed infrastructure platform governed through a common Azure control plane. The electrical grid metaphor works because applications, data, and compute remain close to the locations consuming them, while identity, policy, monitoring, security, and automation provide consistent operating standards across the estate.

The metaphor also needs boundaries. Centralized management does not eliminate local dependencies, guarantee application availability, or turn every infrastructure platform into Azure Local. A successful design treats each site as an intentional failure domain, separates governance from execution, and selects Azure Local only where local infrastructure provides a measurable operational benefit.

Introduction

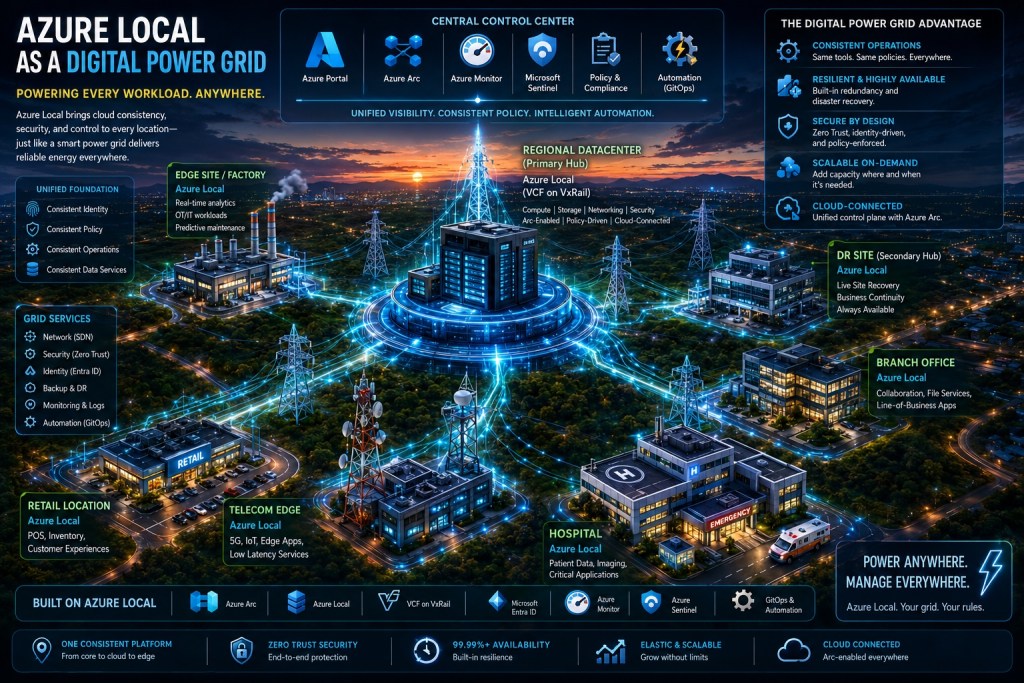

The uploaded architecture image presents Azure Local as a digital power grid. A regional datacenter acts as the primary hub, smaller sites consume infrastructure services at the edge, and a central control center provides policy, monitoring, security, and automation.

That visual is more than an attractive metaphor. It captures an important change in hybrid infrastructure architecture.

Traditional datacenter design placed most computing capacity in one or two central facilities. Remote locations connected back to those facilities and depended on the wide-area network for applications, identity, data, and management. That model becomes difficult when factories need real-time analytics, hospitals need locally available clinical systems, retailers need resilient point-of-sale services, and remote locations cannot tolerate unpredictable WAN performance.

Azure Local changes the placement decision. Compute and data can remain close to the workload, while Azure Arc projects infrastructure and selected resources into the Azure management plane. The result is not one enormous distributed cluster. It is a fleet of locally executing infrastructure systems governed through shared operational standards.

That distinction is the foundation of the digital power grid model.

An electrical grid does not move the power plant into every building. It distributes capacity through substations, transmission systems, protection controls, operating standards, and local delivery infrastructure.

Distributed computing requires a similar model.

Power grid concept	Azure Local architecture equivalent	Operational meaning
Central control center	Azure portal, Azure Arc, Azure Policy, Azure Monitor, Defender for Cloud, Microsoft Sentinel	Central visibility, governance, security posture, and operational coordination
Regional substation	Regional Azure Local instance	Concentrated compute, storage, networking, and shared services
Local substation	Factory, branch, retail, healthcare, or telecom deployment	Workload execution near users, devices, or data
Transmission network	Enterprise WAN, private connectivity, internet egress, and Arc connectivity	Carries management traffic, telemetry, application traffic, and replication
Protection relay	RBAC, security baselines, segmentation, policy, and drift controls	Prevents one fault or unauthorized action from affecting the wider environment
Metering and telemetry	Azure Monitor, logs, metrics, alerts, and health signals	Measures availability, capacity, performance, and security events
Dispatch automation	Infrastructure as code, pipelines, update orchestration, and Kubernetes GitOps	Reconciles environments toward an approved configuration
Reserve capacity	Cluster redundancy, workload replicas, backup, and disaster recovery	Preserves service when components or sites fail

The most useful lesson is not that Azure Local behaves exactly like an electrical utility. It is that distributed infrastructure needs common standards without requiring every workload to execute centrally.

Azure Local combines local infrastructure with an Azure-integrated management experience. Virtual machines, containers, and selected Azure services execute on customer-owned infrastructure, while Azure Arc provides the connection between local resources and Azure management capabilities.

The control relationship can be simplified into three planes.

The management plane expresses intent. It defines who may perform an operation, which policies apply, what telemetry is collected, and how resources are represented.

The local platform control plane translates that intent into infrastructure operations. It manages cluster resources, virtual machines, storage, networking, updates, and health.

The workload plane performs the actual business function. It processes transactions, runs industrial applications, stores local data, serves users, and continues operating according to the dependencies available at that location.

Confusing these planes leads to poor designs. Azure Arc can provide a common governance experience, but it does not remove the need to design local networks, identity dependencies, recovery procedures, capacity reserves, and administrative access.

A Fleet of Systems, Not One Giant Cluster

The image appears to connect every location into one unified fabric. Architecturally, the better interpretation is a fleet of independently scoped Azure Local instances.

A factory instance and a hospital instance may inherit the same naming conventions, security policies, monitoring rules, and deployment templates. They should not necessarily share the same failure domain, maintenance schedule, network topology, or recovery model.

Fleet design provides several advantages:

• A failure at one location does not automatically become a platform-wide failure.
• Sites can be sized according to local workload demand.
• Maintenance can move through controlled deployment rings.
• Regulatory and data-location requirements can be addressed per site.
• Policy can be standardized while exceptions remain visible and governed.
• Hardware configurations can be aligned to site archetypes instead of improvised for every deployment.

The unit of consistency is not the physical cluster configuration alone. It is the combination of architecture standards, policy, identity, automation, lifecycle practices, and evidence.

Central Control Without Centralizing Every Workload

The strongest Azure Local use cases begin with a workload requirement, not a desire to install infrastructure in more locations.

Local execution becomes valuable when an application has one or more of the following constraints:

• Latency between the workload and its users or devices must remain predictable.
• Operations must continue during degraded WAN connectivity.
• Data must remain within a facility, jurisdiction, or organizational boundary.
• Large data volumes would be inefficient to transfer continuously.
• Existing applications require local virtual machines or infrastructure dependencies.
• Industrial, healthcare, retail, or telecommunications systems interact with local equipment.
• A cloud-connected management model is desirable, but public cloud execution is not appropriate for every component.

Different locations can therefore use the same platform while optimizing for different outcomes.

Site archetype	Why execution remains local	Dominant risk	Primary design priority
Regional datacenter	Consolidated enterprise applications and shared services	Capacity or management-domain failure	Scalable topology, lifecycle coordination, and recovery
Factory or industrial site	Machine integration, analytics, and real-time control	WAN loss or production interruption	Local survivability and deterministic connectivity
Branch office	File, identity-adjacent, and line-of-business services	Limited local IT support	Simplicity, remote operations, and repeatability
Retail location	Point of sale, inventory, video, and customer applications	Transaction disruption	Small footprint, rapid recovery, and secure remote management
Telecom edge	Low-latency network and application services	Network partition or capacity spikes	Performance, automation, and distributed observability
Hospital or clinical site	Imaging, patient systems, and critical applications	Safety-impacting service interruption	Availability, security, and tested recovery
Disaster recovery site	Recovery capacity and business continuity	Unvalidated failover assumptions	Replication, dependency mapping, and recovery exercises

The common platform does not erase these differences. It makes them easier to manage through repeatable site patterns.

The Grid Services Layer

The image places identity, policy, networking, security, monitoring, backup, and automation into a shared services layer. That is the correct direction, provided each service is treated as an operational capability rather than a logo on an architecture diagram.

Identity and Access

Azure role-based access control can provide scoped permissions for Azure Local resources and workloads represented through Azure.

That does not mean every local identity dependency disappears. Platform deployment, emergency access, guest operating systems, local applications, Active Directory, service accounts, certificates, secrets, and network devices may still rely on services operating outside the Azure management plane.

A production design should define at least three administrative boundaries:

• Cloud governance administrators, who manage subscriptions, policy, resource hierarchy, and Arc-related services.
• Platform administrators, who manage Azure Local infrastructure, hardware, updates, storage, networking, and local recovery.
• Workload operators, who manage virtual machines, Kubernetes resources, applications, and workload-specific controls.

These roles should not automatically receive interchangeable permissions.

Policy and Configuration

Azure Policy can audit or enforce approved settings across supported Azure Local and Azure Arc resources. Local platform security baselines and drift protection add another layer of configuration control.

Policy is most effective when assignments follow a deliberate hierarchy:

A policy assignment is not the same as compliance. Teams still need remediation ownership, exception handling, evidence retention, and validation that the policy evaluates the intended resource.

Monitoring and Security Operations

Azure Monitor can collect and analyze infrastructure health, performance metrics, logs, alerts, and workload telemetry. Azure Local Insights can provide visibility into nodes, virtual machines, storage, network use, latency, throughput, and other operational signals.

The image uses the former Azure Sentinel name. The current product name is Microsoft Sentinel.

Microsoft Sentinel should be treated as a centralized security analytics and incident-management layer. It does not replace endpoint controls, network segmentation, host hardening, identity protection, or local containment procedures.

A useful monitoring hierarchy is:

• Platform health, including nodes, storage, networking, cluster services, and update state.
• Workload health, including operating systems, applications, databases, and Kubernetes services.
• User or process outcomes, including transaction success, production throughput, clinical workflow availability, or point-of-sale completion.
• Security evidence, including identity events, endpoint detections, configuration drift, policy status, and network events.

A green infrastructure dashboard does not prove that the business service is healthy.

Automation and GitOps

Automation should match the resource being controlled.

Azure Local virtual machine resources can be deployed and managed using Azure Resource Manager templates, Bicep, Terraform, Azure CLI, PowerShell, APIs, and deployment pipelines.

GitOps has a more specific role. For Azure Arc-enabled Kubernetes and AKS environments, Flux can reconcile cluster configuration and application deployments from a declared source of truth. GitOps should not be used as a vague label for every infrastructure operation.

A practical automation model separates:

• Platform deployment and update orchestration
• Virtual machine infrastructure as code
• Kubernetes cluster configuration
• Application deployment
• Policy assignment
• Monitoring and alert configuration
• Site-specific secrets and protected values

Each automation path needs version control, approval gates, validation, rollback, and ownership.

Networking and SDN

Networking is where the power grid metaphor can become misleading. Lines on a diagram do not represent a validated network architecture.

Azure Local supports logical networking and software-defined networking capabilities, but the supported resources and management methods depend on the deployment and SDN approach. Arc-managed SDN and locally managed SDN should not be mixed casually. Some advanced services, including particular gateway and load-balancing scenarios, may require different management tooling or architecture choices.

Before deployment, teams should define:

• Management, storage, compute, and workload network intents
• VLANs, address pools, gateways, and DNS dependencies
• North-south traffic inspection
• East-west segmentation
• Load-balancing requirements
• Remote access paths
• Replication and backup traffic
• Arc and Azure service connectivity
• Operations during WAN degradation
• Ownership of physical and virtual network layers

Networking must be designed as infrastructure, not inferred from the Azure portal experience.

Resilience Is Engineered, Not Inherited

The image promotes high availability as a platform advantage. Azure Local provides building blocks for resilient infrastructure, but a percentage such as 99.99 percent is not automatically inherited by every workload.

Workload availability depends on the complete service chain.

A highly available cluster cannot compensate for an application running as a single virtual machine. Redundant nodes cannot fix a dependency on one remote DNS server. A secondary site does not provide disaster recovery until replication, sequencing, identity, network changes, data integrity, and business validation have been tested.

Depending on the workload and topology, recovery options may include local cluster high availability, application-level replication, stretched-cluster designs, Azure Site Recovery, backup and restore, or recovery into another environment.

The correct design begins with workload objectives:

• What is the required recovery time?
• How much data loss is acceptable?
• Which services must remain available during a WAN outage?
• Which dependencies must exist locally?
• Can the workload run in a degraded mode?
• Who declares a disaster?
• How is failback performed?
• How often is recovery tested?

The architecture diagram is only the starting point. Recovery evidence is what makes the design credible.

Connected, Degraded, and Disconnected Operations Are Different Modes

The phrase “power anywhere, manage everywhere” can imply that cloud connectivity no longer matters. That conclusion would be unsafe.

A conventional Azure-connected deployment depends on connectivity for portions of management, governance, telemetry, licensing, and integrated Azure services. Local workloads may continue during a temporary network interruption when their dependencies are available locally, but cloud-based management functions can be reduced or unavailable.

Disconnected operations is a separate Azure Local deployment model. It provides a local control plane and supports selected Azure Arc-enabled services without requiring a connection to the Azure public cloud. It also introduces additional infrastructure, capacity, lifecycle, and operational requirements.

These modes should not be treated as interchangeable:

Operating mode	Management location	Primary use
Connected	Azure control plane with local platform execution	Standard enterprise, datacenter, branch, and edge deployments
Temporarily degraded	Local workload execution with reduced cloud management	Short connectivity interruptions and survivability scenarios
Disconnected operations	Locally hosted control plane with selected Azure capabilities	Sovereign, isolated, highly regulated, or remote environments

A site that must operate indefinitely without Azure connectivity should be designed for disconnected operations from the beginning. It should not rely on an accidental interpretation of WAN survivability.

Do Not Confuse Unified Governance with a Unified Platform

One element in the image requires an explicit architecture correction. The regional datacenter is labeled in a way that visually combines Azure Local with VCF on VxRail.

Azure Local and VMware Cloud Foundation on VxRail are separate infrastructure platforms. One does not run as a feature of the other.

Azure Arc-enabled VMware vSphere can project VMware inventory into Azure and provide selected VM lifecycle, governance, security, monitoring, and automation experiences. That can create a common operational view across Azure, Azure Local, and VMware environments.

It does not convert VCF on VxRail into Azure Local or replace the VMware and Dell platform lifecycle.

Concern	Azure Local	VCF on VxRail	Potential shared layer
Infrastructure stack	Microsoft distributed infrastructure on validated hardware	VMware Cloud Foundation integrated with Dell VxRail	Azure Arc resource representation
Virtualization management	Azure Local and Azure-integrated management	VMware vCenter and VCF management tooling	Selected VM inventory and operations through Arc-enabled VMware
Network platform	Azure Local logical networking and supported SDN options	VMware vSphere networking and NSX	Guest-level governance and centralized visibility
Platform lifecycle	Azure Local update and OEM-integrated processes	VMware and VxRail lifecycle processes	Reporting, policy evidence, and automation coordination
Support boundary	Microsoft and the Azure Local hardware ecosystem	Broadcom and Dell Technologies	Remains platform-specific
Failure domain	Azure Local instance and its dependencies	VCF workload domains, clusters, and VxRail dependencies	Must still be modeled separately

The correct interpretation of the image is coexistence under broader governance, not a merged platform.

This distinction matters during incidents. A common dashboard does not create a common support boundary. Operators still need to know which platform owns the failure, which lifecycle tool is authoritative, and which vendor support process applies.

Designing the Azure Local Operating Model

A digital power grid is primarily an operating model. The hardware matters, but fleet consistency comes from repeatable decisions and controls.

Define Site Archetypes

Do not design every location independently. Establish a small catalog of approved patterns, such as:

• Regional datacenter
• Medium edge site
• Small branch
• Industrial site
• Regulated or disconnected site
• Disaster recovery site

Each archetype should include hardware profiles, network topology, capacity ranges, management dependencies, security controls, recovery expectations, and support ownership.

Establish the Governance Hierarchy

Resource groups and subscriptions should reflect operational boundaries, not simply organizational charts.

Decide how the following will be separated:

• Production and nonproduction
• Platform and workload administration
• Geographic or regulatory boundaries
• Connected and disconnected environments
• Business units
• Cost ownership
• Policy exceptions
• Monitoring workspaces
• Disaster recovery resources

The hierarchy determines where policy, RBAC, budgets, monitoring rules, and automation permissions apply.

Build a Minimum Platform Baseline

Every deployment should begin from an approved baseline covering:

• Validated hardware and firmware
• Network intents and IP planning
• Identity integration
• RBAC
• Security settings
• Encryption and key recovery
• Monitoring and alerts
• Log collection
• Backup integration
• Update process
• Administrative access
• Automation interfaces
• Configuration and deployment evidence

Site-specific additions can follow, but the baseline should not be reinvented.

Pilot One Complete Site Pattern

A successful proof of concept demonstrates more than virtual machine creation.

The pilot should prove:

• Deployment repeatability
• Policy evaluation and remediation
• Monitoring and alert routing
• Backup and restore
• Platform updates
• Capacity expansion
• Network segmentation
• Administrator separation
• WAN interruption behavior
• Incident escalation
• Workload recovery
• Documentation quality

A pilot that ends after a successful installation has tested deployment, not operations.

Scale Through Deployment Rings

Treat platform expansion like a controlled software release.

Ring	Scope	Purpose	Exit criteria
Engineering	Lab and validation environment	Test releases, automation, and policy changes	Automated tests pass and rollback is documented
Pilot	One representative production site	Validate real dependencies and operating procedures	Stable operations through an agreed observation period
Early adoption	Small group of lower-risk sites	Confirm repeatability across different locations	No unresolved systemic defects
Broad rollout	Standard site archetypes	Scale through approved automation and runbooks	Compliance and health remain within thresholds
Restricted sites	Critical, regulated, or disconnected environments	Apply additional controls and validation	Site-specific acceptance and recovery tests pass

This approach reduces the risk of using every remote site as a test environment.

Common Failure Patterns

The digital grid model can fail even when every Azure Local instance is technically healthy.

Treating the Portal as the Operating Model

A single pane of glass improves visibility. It does not define ownership, escalation, maintenance windows, recovery authority, or support boundaries.

Managing the Same Resource Through Conflicting Paths

Changes performed locally may not always be reflected in Azure-managed resource representations. Teams must establish an authoritative management path for each resource type.

Standardizing Hardware but Not Dependencies

Identical nodes do not create identical service behavior when sites use different WAN circuits, DNS services, identity paths, firewalls, backup systems, or application dependencies.

Calling All Automation GitOps

GitOps is valuable for Kubernetes reconciliation. Virtual machine provisioning, hardware lifecycle, policy, and platform deployment require their own automation patterns.

Assuming SDN Capabilities Are Universal

Supported networking resources differ by SDN approach and management method. Mixing Arc-managed and locally managed workflows can create unsupported or unpredictable configurations.

Collecting Everything Without an Observability Strategy

Centralized logs and metrics can become expensive and noisy. Collection rules, retention, alert severity, routing, and ownership should be designed around operational decisions.

Confusing Disconnected Operations with WAN Tolerance

A connected system surviving a brief outage is not the same as a platform designed to operate without public cloud connectivity.

Ignoring the Resource Bridge and Management Dependencies

Management appliances and Arc integration components are critical infrastructure. They require capacity planning, protection, monitoring, and documented recovery procedures.

Does Every Site Need Azure Local?

Azure Local is not the automatic answer for every on-premises server or branch office.

The following decision path separates platform need from governance need.

Use Azure Local when the organization needs both local execution and a full infrastructure platform aligned to Azure management.

Use Azure Arc without Azure Local when an existing platform remains appropriate and the primary requirement is consistent governance, inventory, monitoring, security, or selected lifecycle operations.

Use public Azure when local execution does not provide a measurable latency, continuity, compliance, sovereignty, integration, or economic advantage.

The architecture should follow the workload constraint.

Conclusion

The digital power grid metaphor provides a useful mental model for Azure Local. Central policy, identity, monitoring, security, and automation create common operating standards, while compute and data remain close to the people, equipment, and applications consuming them.

The most important design principle is separation. Separate the management plane from the workload plane. Separate fleet governance from site execution. Separate connected survivability from true disconnected operations. Separate a unified Azure view from the lifecycle and support boundaries of the platforms being represented.

Azure Local becomes valuable when it is deployed as part of a deliberate distributed operating model. That model requires site archetypes, validated networking, policy hierarchy, automation, observability, recovery testing, and clear ownership.

The digital grid is not created by drawing glowing connections between datacenters. It is created when every location can operate locally, be governed consistently, fail predictably, recover deliberately, and remain understandable to the teams responsible for running it.

External References
